Duco 425 mm

Viser 10 resultater

  • Cross-section of a circular mechanical part with Ø430, showing internal stepped features and three vertical dimension lines (22, 35, 52).

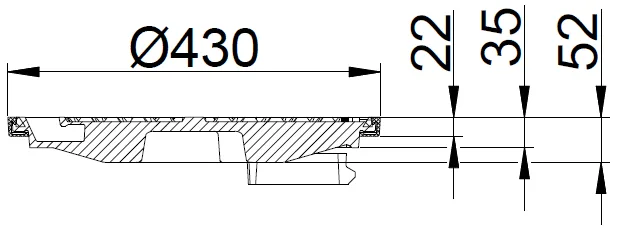

    Duco 425 mm dæksel med pakning og fjederlås, 40 t, SG SORT
    Duco 425 mm dæksel med pakning og fjederlås, 40 t, SG SORT
    1.290 kr inkl. moms
  • Cross-sectional technical drawing of a machined part showing a large circular feature Ø430 and stepped vertical dimensions of 22, 35, and 52 mm, with hatching indicating material in a side view.
    Duco 425 mm dæksel med PUR-pakning og fjederlås, 40 t, SG SORT
    Duco 425 mm dæksel med PUR-pakning og fjederlås, 40 t, SG SORT
    1.879 kr inkl. moms
  • Cross-section of a precision mechanical part: a circular plate Ø430 with stepped internal features and three reference dimensions (22, 35, 52) to the edge.
    Duco 425 mm rist med pakning og fjederlås, 40 t, SG SORT
    Duco 425 mm rist med pakning og fjederlås, 40 t, SG SORT
    1.210 kr inkl. moms
  • Cross-section of a cylindrical housing with stepped diameters: Ø560 outer, Ø448 top bore, Ø360 inner bore, overall height 100 units (dimensions shown).
    Duco 425 x 100 mm karm uden pakning, rund, fast, GG SORT
    Duco 425 x 100 mm karm uden pakning, rund, fast, GG SORT
    1.119 kr inkl. moms
  • Cross-sectional technical drawing of a flange housing: overall width 510 mm, outer diameter Ø416 mm, inner bore Ø360 mm, overall height 180 mm with 100 mm and 80 mm reference offsets, and 36 mm wall thickness at the mounting flanges.
    Duco 425 x 180 mm karm uden pakning, firkantet, fast, GG SORT
    Duco 425 x 180 mm karm uden pakning, firkantet, fast, GG SORT
    2.546 kr inkl. moms
  • Cross-section of a flanged cylindrical component with stepped diameters: Ø560 at the top, Ø416 and Ø360 steps, overall height 180 mm, showing a flange and interior cavity.
    Duco 425 x 180 mm karm uden pakning, rund, flydende, SG SORT
    Duco 425 x 180 mm karm uden pakning, rund, flydende, SG SORT
    2.116 kr inkl. moms
  • Square brown cast-iron manhole cover with a circular ring and raised grid pattern on top.
    Duco 425 x 195 mm karm/dæksel m/lås, firkantet, fast, 12,5 t, GG
    Duco firkantet og fast karm/dæksel med belastningsklasse 12,5 t og lås, vejer minimalt, og sikrer et stærkt produkt i indkørsler, stier osv.
    2.791 kr inkl. moms
  • Square-edged drainage grate with a circular pit cover in the center, labeled DUCO, set in a textured grid-patterned concrete surface.
    Duco 425 x 195 mm karm/rist med lås, firkantet, fast, 12,5 t, GG
    Duco firkantet og fast karm/rist med belastningsklasse 12,5 t og lås, vejer minimalt, og sikrer et stærkt produkt i indkørsler, stier osv.
    2.791 kr inkl. moms
  • Sectional view of a cylindrical housing with outer diameter Ø360 and inner bore Ø416, length 510, overall height 250, featuring a top recess and mounting flange.
    Duco 425 x 250 mm karm uden pakning, firkantet, fast, GG SORT
    Duco 425 x 250 mm karm uden pakning, firkantet, fast, GG SORT
    3.235 kr inkl. moms
  • Cross‑sectional side view of a cylindrical recessed housing with a top flange. Key dimensions shown: outer Ø560, inner passages Ø360 and Ø416, and a total height of 250 with additional vertical features of 19 and 36.
    Duco 425 x 250 mm karm uden pakning, rund, flydende, SG SORT
    Duco 425 x 250 mm karm uden pakning, rund, flydende, SG SORT
    2.600 kr inkl. moms
