110 mm blücher rustfri a304

Viser 20 resultaterSorteret efter popularitet

  • Engineering drawing of a 110 mm diameter duct elbow with a 45° bend, overall height 93 mm, bend section length 43 mm, shown with end-view and angled connection.
    Ø 110 mm x 45° Bøjning rustfri AISI304/EN1.4301 Blücher
    Bøjning 45°, Ø110mm - Rustfrit stål
    233 kr inkl. moms
  • CAD-style drawing of a cylindrical bottle neck and cap, showing dimensions: 110 mm diameter, 78 mm body height, top portion 25 mm, and a 15° chamfer/angle; includes isometric cap view with threaded features.
    Ø 110 mm x 15° Bøjning rustfri AISI304/EN1.4301 Blücher
    Bøjning 15°, Ø110mm - Rustfrit stål
    187 kr inkl. moms
  • Technical drawing of a cylindrical duct connector with a mounting clamp, showing dimensions: overall diameter Ø110 mm, heights 194 mm and 123 mm, and outlet depth 120 mm (two views). Inset isometric view of the assembled connector with clamp and circular opening.
    110 mm Rør med renseadgang rustfri AISI304/EN1.4301 Blücher
    Rør med renseadgang, Ø110mm - Rustfrit stål
    830 kr inkl. moms
  • Technical drawing of a cylindrical pipe fitting with a 45° branch: top flange Ø110, side outlet Ø75, overall height 181 mm, base width 95 mm.
    110 x 75 mm x 45° Grenrør rustfri AISI304/EN1.4301 Blücher
    Grenrør 45°, Ø110/75mm - Rør: Ø110mm, Grenrør: Ø75mm - Rustfrit stål
    457 kr inkl. moms
  • Engineering drawing of a cylindrical duct adapter with a 45-degree elbow and flanged ends; dimensions in millimeters (e.g., 110, 105, 149, 236). Bottom shows isometric view of two pipe sections with a conical outlet.
    110 x 110 mm x 45° Grenrør rustfri AISI304/EN1.4301 Blücher
    Grenrør 45°, Ø110/110mm - Rør: Ø110mm, Grenrør: Ø110mm - Rustfrit stål
    527 kr inkl. moms
  • White metal plumbing pipe coupling/adapter with a wide base and narrow top, used to join large-diameter pipes.
    110 x 75 mm Reduktion rustfri AISI304/EN1.4301 Blücher
    Overgangsstykke, koncentrisk.
    607 kr inkl. moms
  • Technical drawing of a bottle neck adapter with threaded top; shows Ø75 top, Ø110 body, height 116 mm, and 15 mm shoulder dimension; includes a 3D view.
    110x75mm bm reduktion aisi304
    110x75mm bm reduktion aisi304
    208 kr inkl. moms
  • Tall cylindrical jar with screw-cap lid; 110 mm diameter and 1500 mm height, shown in side and isometric views.
    Ø 110 x 1500 mm Rør rustfri AISI304/EN1.4301 Blücher
    Afløbsrør af rustfri stål. Lige rør med 1 muffe.
    493 kr inkl. moms
  • Technical drawing of a tall cylindrical container with a screw-on cap: diameter 110 mm, height 500 mm; includes a front elevation with threaded neck and an isometric view of the cap.
    Ø 110 x 500 mm Rør rustfri AISI304/EN1.4301 Blücher
    Afløbsrør af rustfri stål. Lige rør med 1 muffe.
    206 kr inkl. moms
  • Tall cylindrical bottle with a screw-on cap; outer diameter Ø110 and height 1000 (units implied); includes cross-section showing wall thickness and neck area.
    Ø 110 x 1000 mm Rør rustfri AISI304/EN1.4301 Blücher
    Afløbsrør af rustfri stål. Lige rør med 1 muffe.
    369 kr inkl. moms
  • Two cross-section drawings of cylindrical components with dimensions: top shows outer Ø134 mm, inner Ø110 mm, and height 31 mm; bottom shows outer Ø132 mm, inner Ø100 mm, and height 36 mm.
    110mm bm mengeringssæt
    110mm bm mengeringssæt
    244 kr inkl. moms
  • Engineering drawing of a cylindrical pipe adapter with a 50 mm side outlet at 45°, main Ø110 mm, overall height 147 mm; branch length 119 mm and bottom leg 84 mm. Includes isometric view showing the side branch.
    110 x 50 mm x 45° Grenrør rustfri AISI304/EN1.4301 Blücher
    Grenrør 45°, Ø110/50mm - Rør: Ø110mm, Grenrør: Ø50mm - Rustfrit stål
    467 kr inkl. moms
  • Front elevation of a tall cylindrical jar with a screw-on lid; diameter 110 mm, height 250 mm, with threading on the lid.
    110x250mm bm afl.rør aisi304
    110x250mm bm afl.rør aisi304
    133 kr inkl. moms
  • Technical drawing of a circular ring/seal with outer diameter 124.2 mm and inner diameter 110 mm; cross-section shows a 8.9 mm thick wall. Front and cross-sectional views imply a hollow ring.
    110mm bm epdm gummiring
    110mm bm epdm gummiring
    33 kr inkl. moms
  • Open-top silver metal cylinder showing its empty interior.

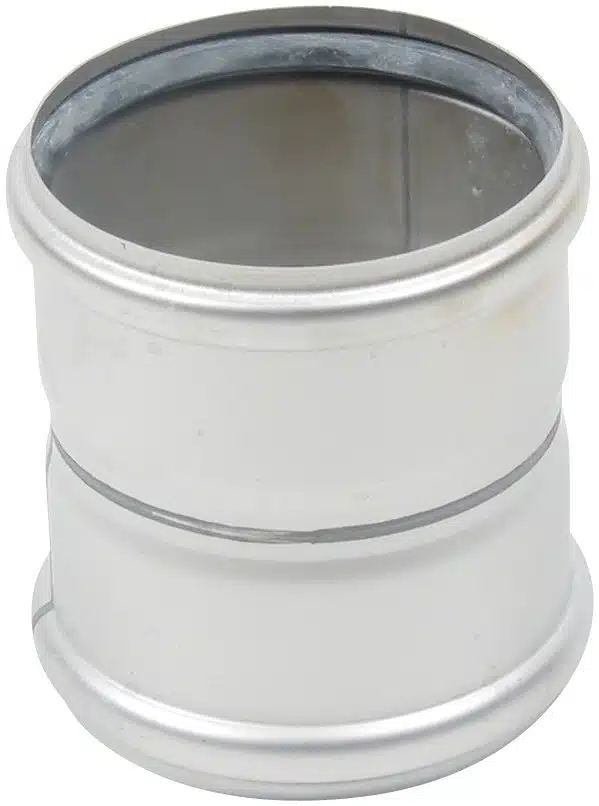

    110 mm Dobbelt stikmuffe rustfri AISI304/EN1.4301 Blücher
    Dobbelt stikmuffe, Ø110mm - Rustfrit stål
    167 kr inkl. moms
  • Technical drawing of a 110 mm duct elbow with 68° bend (R110), overall height 118 mm, outlet Ø110, in cross-section.
    Ø 110 mm x 68° Bøjning rustfri AISI304/EN1.4301 Blücher
    Bøjning 68°, Ø110mm - Rustfrit stål
    373 kr inkl. moms
  • Technical drawing of a tall cylindrical jar with a screw-cap neck; front elevation shows height 2000 mm and diameter 110 mm (Ø110).
    110x2000mm bm afl.rør aisi304
    110x2000mm bm afl.rør aisi304
    664 kr inkl. moms
  • White PVC pipe elbow fitting with a 45-degree bend and open end facing the viewer.
    Ø 110 mm x 30° Bøjning rustfri AISI304/EN1.4301 Blücher
    Bøjning 30°, Ø110mm - Rustfrit stål
    187 kr inkl. moms
  • Close-up of a silver gas cylinder neck with a threaded valve and green label, showing the rim and opening to the regulator area.
    110 x 50 mm Overgang excentrisk rustfri AISI304/EN1.4301 Blücher
    Overgang exentrisk, Ø50/110mm - Rustfrit stål
    258 kr inkl. moms
  • Metal pipe clamp with two bolts and a rubber-sealed connector for securing a pipe or hose.
    110 x 40/32 mm Blücher indskæringsmanchet
    Til anboring på støbejerns afløbsrør
    411 kr inkl. moms
