110 mm blücher syrefast a316

Viser 13 resultaterSorteret efter popularitet

  • 90-degree metal duct elbow for HVAC ventilation with attached labeling sticker on the outside edge
    Ø 110 mm x 87,5° Bøjning syrefast AISI316L/EN1.4404 Blücher
    Bøjning 87.5°, Ø110mm - Syrefast stål
    350 kr inkl. moms
  • Two-view CAD drawing of a cylindrical cap with a threaded top ring. Section shows 110 mm width, 78 mm height, and a 15° internal angle; an isometric view displays the cap form with threads.
    Ø 110 mm x 15° Bøjning syrefast AISI316L/EN1.4404 Blücher
    Bøjning 15°, Ø110mm - Syrefast stål
    211 kr inkl. moms
  • Tall cylindrical container with a screw-on cap; 110 mm diameter, 1000 mm tall; shows neck and body with a curved seam and cap detail (technical drawing).
    110x1000mm BM afl.rør aisi316 Syrefast
    110x1000mm BM afl.rør aisi316 Syrefast
    482 kr inkl. moms
  • Technical drawing of a 45-degree pipe elbow fitting with a 110 mm outer diameter; shows dimensions 93 mm height and 43 mm segment, with isometric view of the joint.
    Ø 110 mm x 45° Bøjning syrefast AISI316L/EN1.4404 Blücher
    Bøjning 45°, Ø110mm - Syrefast stål
    244 kr inkl. moms
  • White 90-degree pipe elbow fitting used in plumbing (angled view)
    Ø 110 mm x 30° Bøjning syrefast AISI316L/EN1.4404 Blücher
    Bøjning 30°, Ø110mm - Syrefast stål
    249 kr inkl. moms
  • Two-view drawing of a 100 mm diameter 90-degree elbow duct fitting: a side view with overall length 289 mm and vertical rise 249 mm, plus isometric view showing the curved elbow and two straight ends.
    110mmx87g bm p-vandlås aisi316
    110mmx87g bm p-vandlås aisi316
    1.121 kr inkl. moms

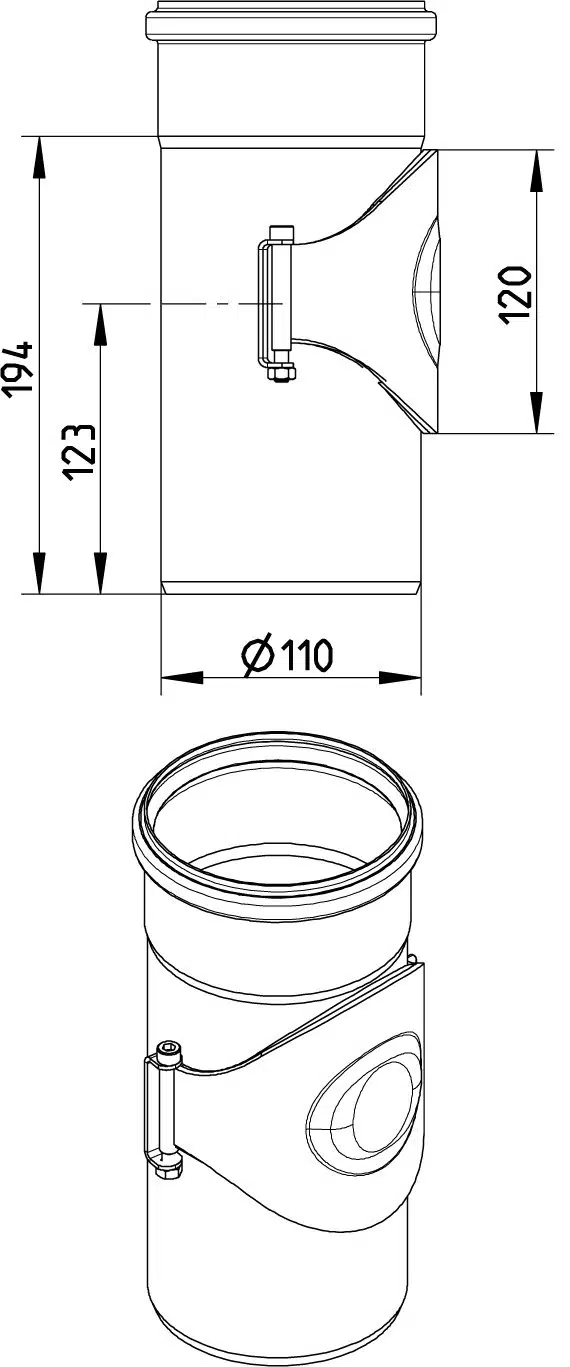

  • Engineering drawing of a cylindrical duct connector with a side outlet and clamp, shown in both side and isometric views with dimensions: Ø110 mm, overall height 194 mm, internal height 123 mm, side outlet height 120 mm.
    110 mm Rør med renseadgang syrefast AISI316L/EN1.4404 Blücher
    Rør med renseadgang, Ø110mm - Syrefast stål
    995 kr inkl. moms
  • Technical drawing of a tall cylindrical container with a screw-cap; Ø110 mm, 500 mm tall, showing cross-section and an isometric view of the jar.
    Ø 110 x 500 mm Rør syrefast AISI316L/EN1.4404 Blücher
    Afløbsrør af rustfri stål. Lige rør med 1 muffe.
    323 kr inkl. moms
  • Technical drawing of a vertical pipe fitting with a 45-degree elbow and flanged top: outer diameter Ø110 mm, side outlet Ø75 mm, overall height 181 mm; base dimensions 60 mm, projections 95 mm and 135 mm.
    110 x 75 mm x 45° Grenrør syrefast AISI316L/EN1.4404 Blücher
    Grenrør 45°, Ø110/75MM - Rør: Ø110mm, Grenrør: Ø75mm - Syrefast stål
    622 kr inkl. moms
  • CAD drawing of a 45° duct elbow with flanged ends and dimensions (110, 149, 236) indicating overall layout of a ventilation vent component
    110 x 110 mm x 45° Grenrør syrefast AISI316L/EN1.4404 Blücher
    Grenrør 45°, Ø110/110MM - Rør: Ø110mm, Grenrør: Ø110mm - Syrefast stål
    580 kr inkl. moms
  • Open-top silver metal tin can seen from above, showing its reflective interior.
    110mm bm dobbeltmuffe aisi316
    110mm bm dobbeltmuffe aisi316
    225 kr inkl. moms
  • Tall cylindrical jar with screw-on cap; Ø110 mm, 2000 mm tall; lid detail shown.
    110x2000mm BM afl.rør aisi316 Syrefast
    110x2000mm BM afl.rør aisi316 Syrefast
    901 kr inkl. moms
  • Cylindrical jar with screw-cap shown in a front cross-section (250 mm tall, Ø110 mm) and an isometric view below.
    110x250mm bm afl.rør aisi316
    110x250mm bm afl.rør aisi316
    203 kr inkl. moms
